Subwoofer

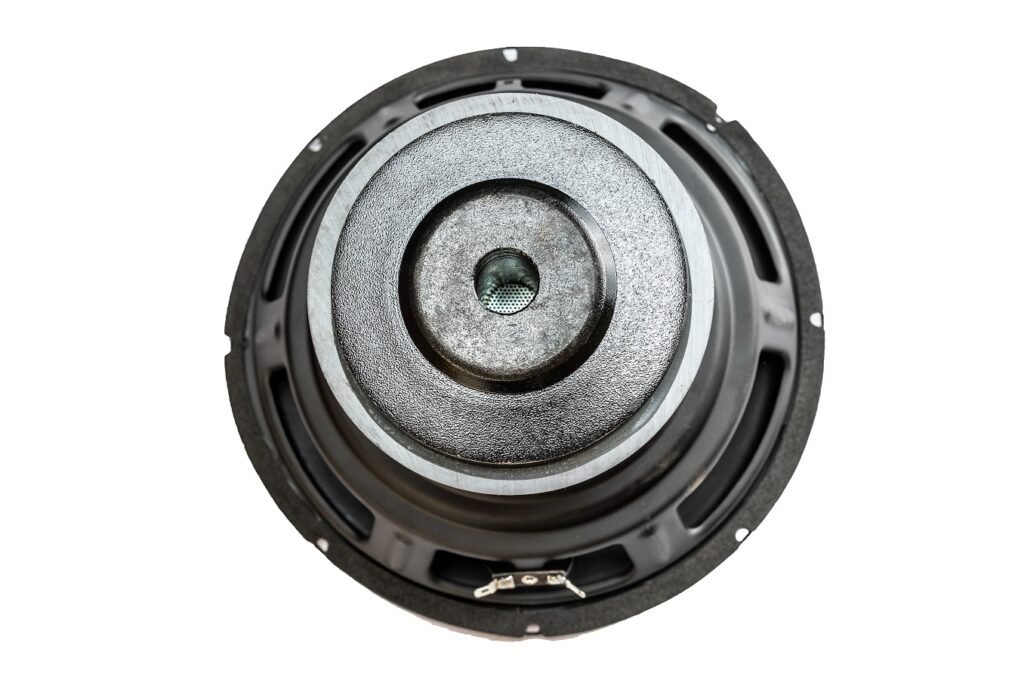

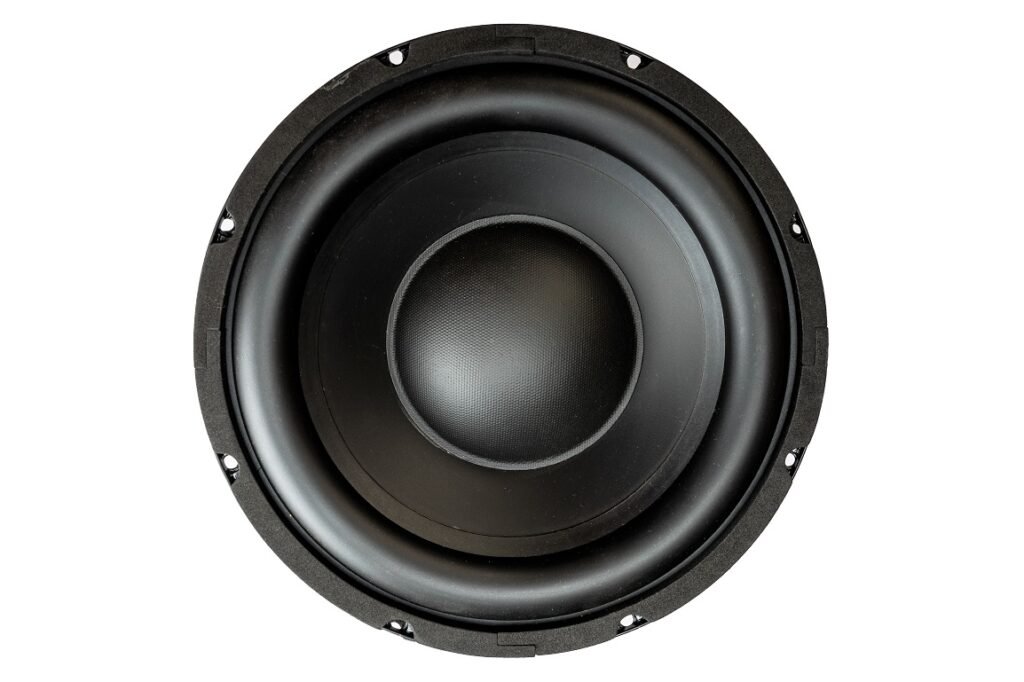

10” Large Xmax Subwoofer with Shorting Ring
Free Shipping
Secure Payment
Easy Returns
Quality Assured
10” 4Ω 200W Large Xmax Subwoofer with Shorting Ring.
10” Subwoofer 4Ω 200W with Shorting Ring
| Electrical | |
| Nominal Impedance | 4 Ohms |
| Resonance Frequency | 23 Hz |
| Power Handling {IEC-268-5C} | 200 Watt |
| Long Term Power {IEC-268-5L} | 600 Watt |
| Short Term Power {IEC-268-5S} | 1000 Watt |
| Sensitivity (2.83V/1m) | 87 dB |
| Resistance (DC) | 3.5 Ω |
| Qms | 10.87 |
| Qes | 0.31 |
| Qts | 0.29 |
| BL | 14.65 T-M |
| VAS | 52.80 Liters |
| Mechanical | |
| Voice Coil Dia | 50mm |
| Winding Width | 32.6mm |
| Former | TIL |
| Layers | 4 |
| Wire Type | Copper |
| Magnet | 134 X 60 mm |
| Cone Material | Coated Paper |
| Surround Material | Rubber |
| Chassis | Stamped Steel |
| Dust Cap | Coated Paper |
Frequency/Impedance Response
 |
 |
