Install Series
6 Inch Ceiling Speaker with 100V LMT
Free Shipping
Secure Payment
Easy Returns
Quality Assured
6 Inch Fullrange Ceiling Speaker with100V LMT. Dog Ear/Wing Nut mounting for quick & reliable installation. 100V transformer can be customised for various Power tapping options like 1.5W/3W/6W/ or 3W/6W/12W.

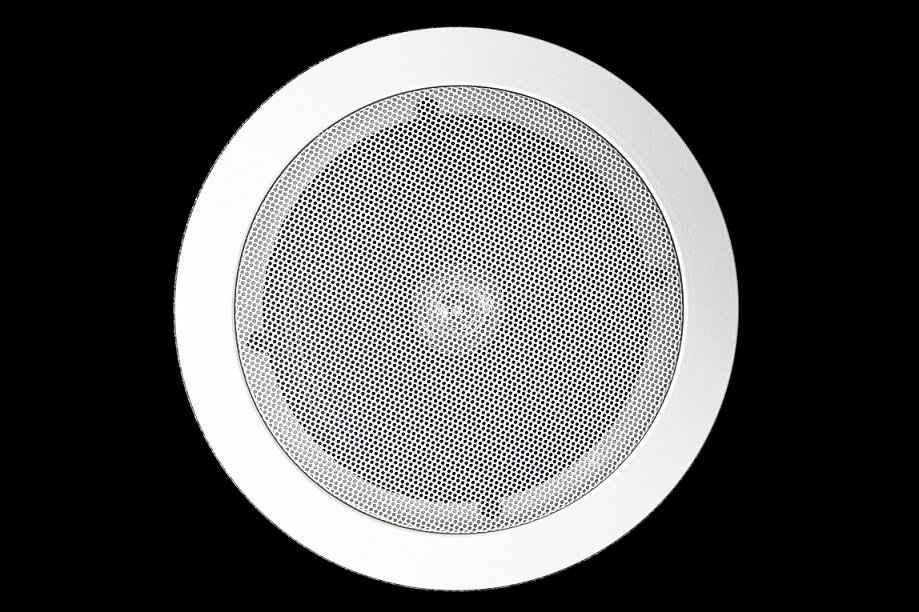

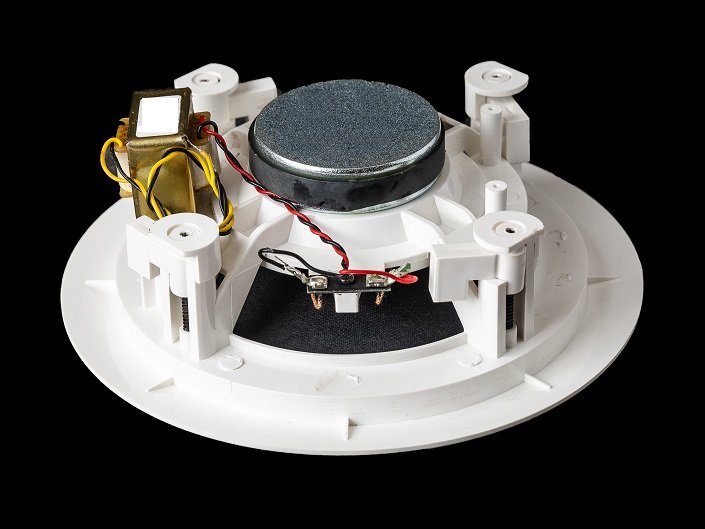

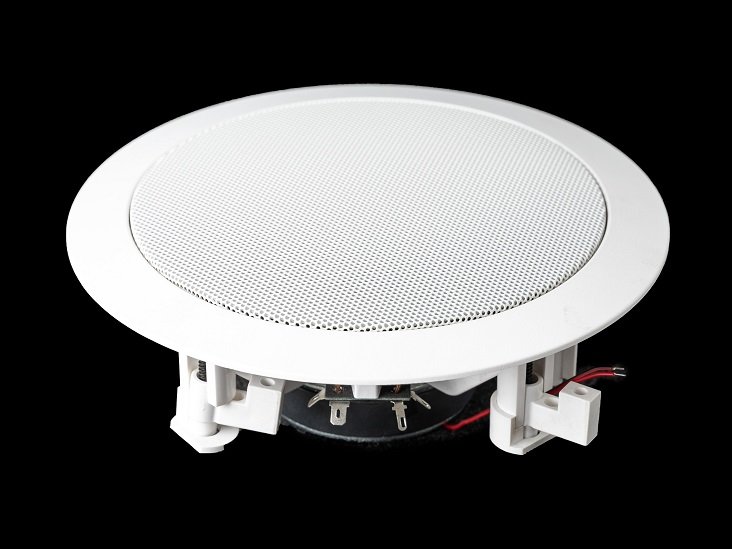

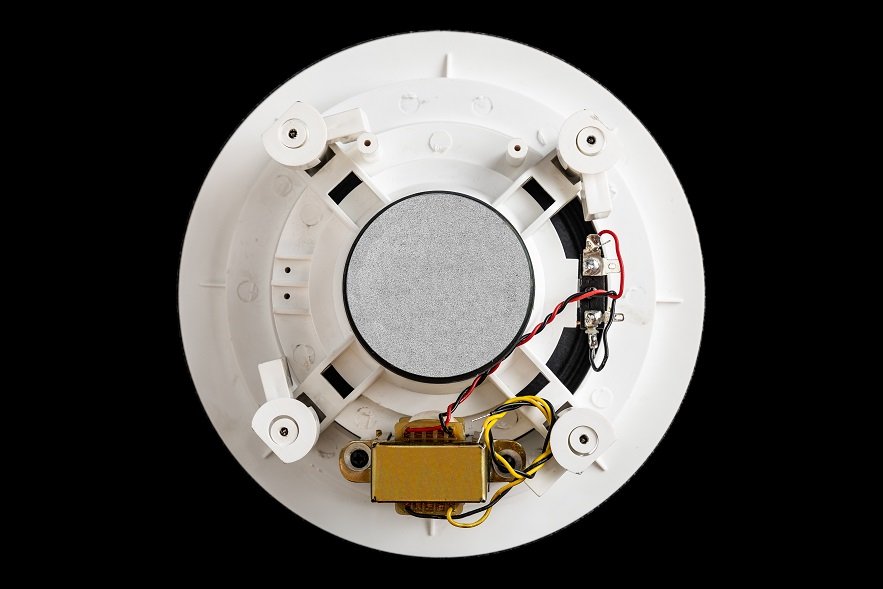

6 inch Ceiling Speaker with 100V LMT
Specifications
| Rated Power | 6W (100V Line). Can be customised upto 12W* |
| Transformer Tapping | 6W. Various Power tapping options available* |
| Rated Impedance | 100V Line :- 1667Ω(6w)* |
| Operating Range | 100Hz – 15kHz |
| SPL @1W/1M/1kHz | 90dBÂ |
| Speaker Type | Fullrange Speaker with Dual Cone |
| Mounting Cut Out | 175mm |
| Ceiling Thickness | 9mm-30mm |
| Mounting Type | Dog Ear/ Wing Nut Type |
| Frame Material & Finish | ABS, White |
| Grille Material & Finish | Perforated Steel with white powder coating |
| Dimensions | ∅ 213mm, Height – 75mm~114mm* |
| Weight | 0.85 Kg ~ 1.2Kg* |
*Depending on transformer used. Transformer Tapping available 6W/3w/1.5w or 12W/6W/3W
Frequency Response
 |
|
Drawings |
Shipping and delivery details will be updated shortly.
