Tweeter Square

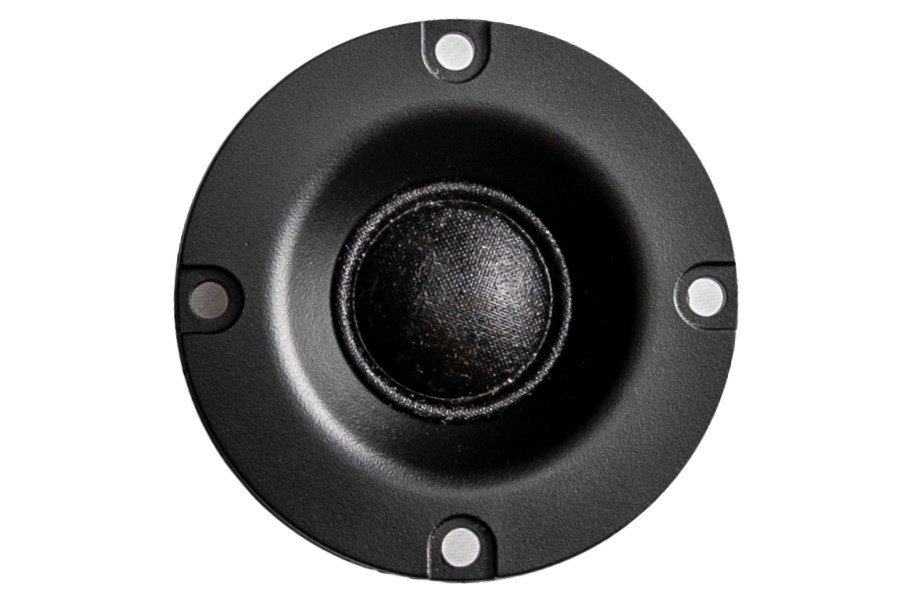

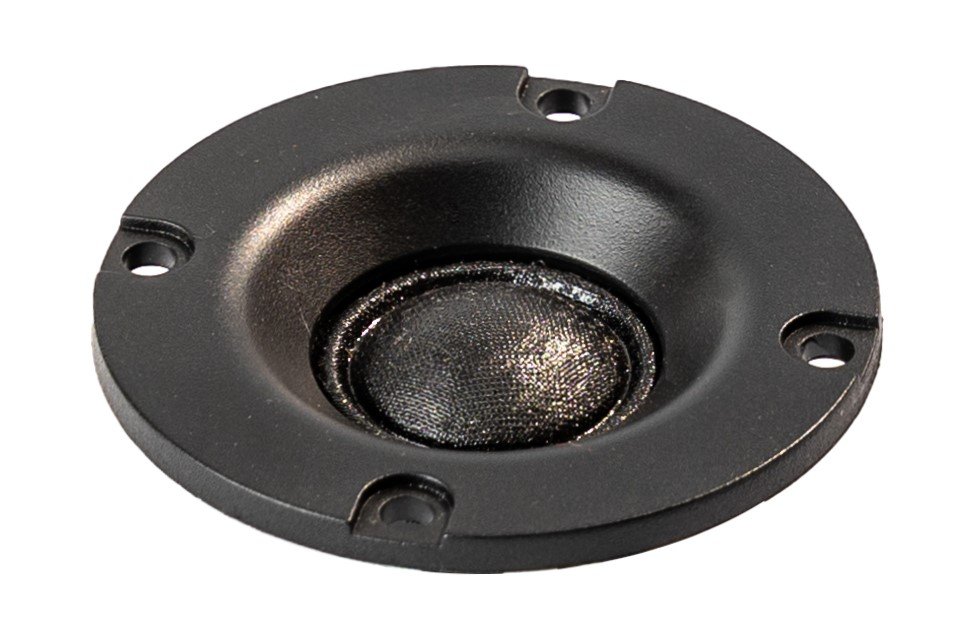

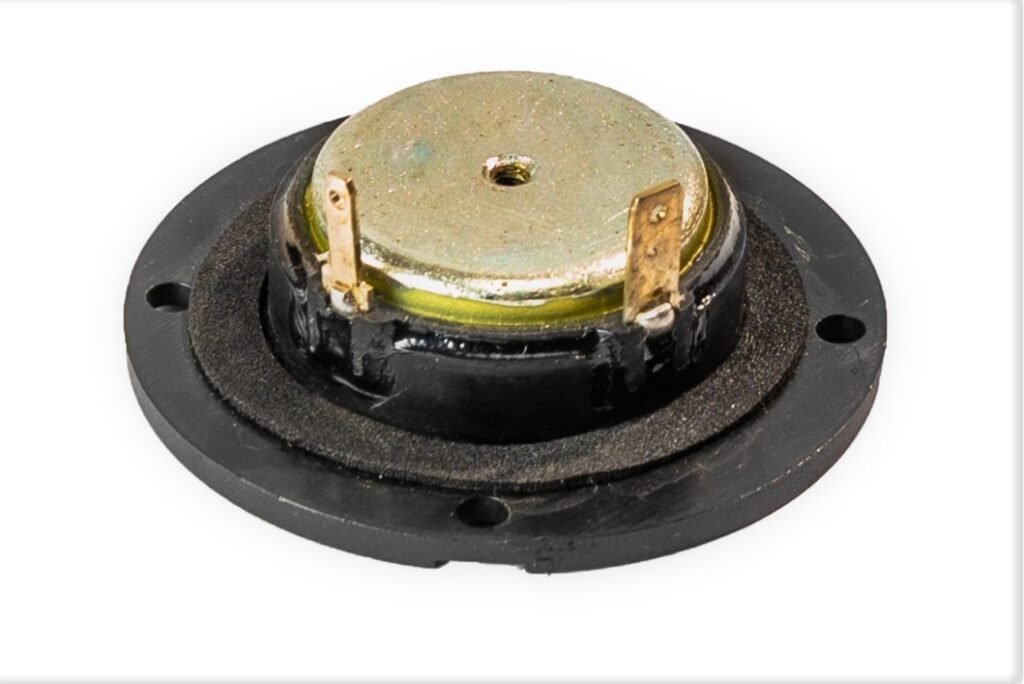

D21FN Fabric Dome Tweeter with Neodymium Magnet System
Free Shipping
Secure Payment
Easy Returns
Quality Assured
19mm Fabric Dome tweeter with great sound and a perfect fit for Bookshelf Speakers/Soundbars
D21FN Fabric Dome Tweeter with Neodymium Magnet System :
Specifications
| Nominal Impedance | 4 Ohms |
| DC Resistance | 3.5 Ohms |
| Resonance Frequency | 1800 Hz |
| Operating Range | 3,000 Hz to 20,000 Hz |
| Power Handling {IEC-268-5C} * | 10 Watt |
| Long Term Power {IEC-268-5L} * | 30 Watt |
| Short Term Power {IEC-268-5S} * | 50 Watt |
| Sensitivity (2.83V/1m) | 90.0 dB |
| Voice Coil Diameter | 19 mm |
| Former Material | Aluminum |
| Layers | 2 |
| Voice Coil Wire Type | Round Copper |
| Magnet Material | Neodymium |
| Dome Material | Coated Fabric |
| Surround Material | Coated Fabric |
| Front Plate Type | Moulded Plastic |
| *IEC 268-5 through High Pass (3000 Hz) 2nd Order Filter | |
| Note: Available in Round and Cropped Front Plate | |
Frequency/Impedance Response
  |
 |
Drawings
|
