Tweeter Square

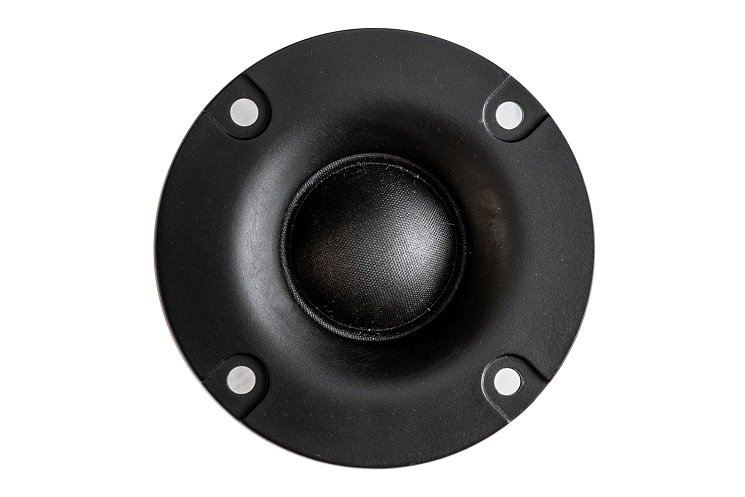

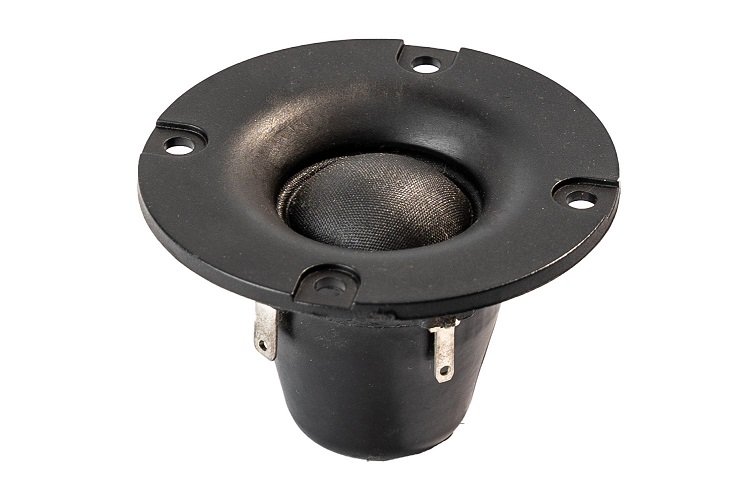

D27SN LFS Low Resonance Soft Dome Tweeter with Neodymium Magnet System
Free Shipping
Secure Payment
Easy Returns
Quality Assured
1″ Low Resonance Soft Dome tweeter with flat frequency response and superb sound with European Diaphragm.
D27SN LFS Low Resonance Soft Dome Tweeter with Neodymium Magnet System :
| Nominal Impedance | 4 Ohms | |
| DC Resistance | 3.0 Ohms | |
| Resonance Frequency | 950 Hz | |
| Operating Range | 1500 Hz to 20,000 Hz | |
| Power Handling {IEC-268-5C} * | 15 Watt | |
| Long Term Power {IEC-268-5L} * | 45 Watt | |
| Short Term Power {IEC-268-5S} * | 75 Watt | |
| Sensitivity (2.83V/1m) | 93.0 dB | |
| Voice Coil Diameter | 25 mm | |
| Former Material | Aluminum | |
| Layers | 2 | |
| Voice Coil Wire Type | Round Copper | |
| Magnet Material | Neodymium | |
| Dome Material | Silk | |
| Surround Material | Silk | |
| Front Plate Type | Moulded Plastic | |
| *IEC 268-5 through High Pass (1800 Hz) 2nd Order Filter Note: Available in Round and Cropped Front Plate |
||
Frequency/Impedance Response
 |
 |
Drawings
|
Shipping and delivery details will be updated shortly.
